VEE GEE SCIENTIFIC

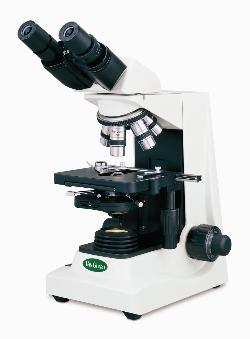

1400 Series Compound Microscopes

The 1400 Series of Compound Microscopes offers top professional performance with highly advanced features and optics, producing images of the utmost clarity. The 1400 Series includes Brightfield and Phase Contrast models. Both binocular and trinocular (Seidentopf) viewing heads are inclined at 30 and rotate a full 360. All models feature dioptric adjustment (-5 to +5) and interpupillary adjustment (55 to 75mm). Trinocular heads feature a sliding main prism (30/70 split), providing full-time imaging when the vertical tube is in use (70% of the image to the vertical tube and 30% to the viewing eyetubes). Eyepiece magnification is 10X Widefield (DIN) with a field number of 18. The quadruple (Brightfield) or quintuple (Phase Contrast), ball-bearing nosepiece has high-grade lubricant and positive stops, and is reversed (inward-facing) for easier slide manipulation and to help keep objectives clean.

Brightfield models have achromatic or plan achromatic objectives. Phase Contrast models have plan achromatic objectives. All objectives are made to DIN standards and are coated. The durable 5.5 x 5.5 (140 x 140mm) stage offers a high level of fluid motion control and features a right-hand, low-position coaxial control, a removable spring-clip slide holder and a chemical-resistant finish. Ultra low-position coaxial coarse and fine focus controls are graduated to two microns per division and feature a 40mm focusing range and safety autostop.

Brightfield models come with a 1.25 N.A. Abbe condenser. Phase Contrast models come with a 1.25 N.A. Zernike condenser with phase annulus rings for 10X, 20X, 40X, and 100X, plus a 0 setting for brightfield work. All condensers feature spring-loaded centering knobs, an iris diaphragm and a swing-in filter holder. Condensers are mounted on a rack-and-pinion focusing mechanism. Illumination is provided by a 20W variable quartz halogen light source. Blue, green (Phase Contrast models only) and neutral density filters are included. Ergonomic body is made of cast metal with a stain-resistant enamel finish. Stable base measures 8.9 x 6.3 (225 x 160mm) and includes nonskid rubber feet. Overall dimensions: 8.9L x 6.3W x 15.7H (225 x 160 x 400mm). Weight: 18.3 lb. (8.3kg). Voltage:110V.

more

Features

  • Professional level
  • Brightfield and Phase Contrast models
  • Precision optics
  • Available in trinocular head

Full Description

1400 Series Compound Microscopes

The 1400 Series of Compound Microscopes offers top professional performance with highly advanced features and optics, producing images of the utmost clarity. The 1400 Series includes Brightfield and Phase Contrast models. Both binocular and trinocular (Seidentopf) viewing heads are inclined at 30 and rotate a full 360. All models feature dioptric adjustment (-5 to +5) and interpupillary adjustment (55 to 75mm). Trinocular heads feature a sliding main prism (30/70 split), providing full-time imaging when the vertical tube is in use (70% of the image to the vertical tube and 30% to the viewing eyetubes). Eyepiece magnification is 10X Widefield (DIN) with a field number of 18. The quadruple (Brightfield) or quintuple (Phase Contrast), ball-bearing nosepiece has high-grade lubricant and positive stops, and is reversed (inward-facing) for easier slide manipulation and to help keep objectives clean.

Brightfield models have achromatic or plan achromatic objectives. Phase Contrast models have plan achromatic objectives. All objectives are made to DIN standards and are coated. The durable 5.5 x 5.5 (140 x 140mm) stage offers a high level of fluid motion control and features a right-hand, low-position coaxial control, a removable spring-clip slide holder and a chemical-resistant finish. Ultra low-position coaxial coarse and fine focus controls are graduated to two microns per division and feature a 40mm focusing range and safety autostop.

Brightfield models come with a 1.25 N.A. Abbe condenser. Phase Contrast models come with a 1.25 N.A. Zernike condenser with phase annulus rings for 10X, 20X, 40X, and 100X, plus a 0 setting for brightfield work. All condensers feature spring-loaded centering knobs, an iris diaphragm and a swing-in filter holder. Condensers are mounted on a rack-and-pinion focusing mechanism. Illumination is provided by a 20W variable quartz halogen light source. Blue, green (Phase Contrast models only) and neutral density filters are included. Ergonomic body is made of cast metal with a stain-resistant enamel finish. Stable base measures 8.9 x 6.3 (225 x 160mm) and includes nonskid rubber feet. Overall dimensions: 8.9L x 6.3W x 15.7H (225 x 160 x 400mm). Weight: 18.3 lb. (8.3kg). Voltage:110V.

8

  • Manufacturer:

    Vee Gee Scientific

  • SKU:

    GROUP-1660
