Globe Scientific® BioBlue Series Compound Microscopes

Clear and bright images at every magnification. The modern BioBlue compound microscopes are developed for educational purposes with a primary focus on ergonomics and today’s quality standards. These microscopes are supplied with secure eyepieces and adjustable rack stop to prevent damage to sample and objectives.

The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification, the image remains perfectly in focus and centered. The 130 x 130mm stage with double layered 70 x 28mm X-Y mechanical stage enable a 2µm precision positioning of the specimen.

FEATURES

  • WF 10x/18mm eyepiece(s)
  • Binocular and trinocular models
  • Model with integrated 7-inch LCD screen
  • Integrated X-Y mechanical stage
  • Height adjustable Abbe condenser with iris diaphragm and filter holder
  • LED models with rechargeable AA batteries and integrated power supply
  • Reversed nosepiece for four semi plan objectives
  • Coaxial coarse and fine adjustments with rack stop
  • Binocular and trinocular models supplied with 1W NeoLED illumination for increased light output
  • Ergonomic stand
  • Provided with APL (Antimicrobial Protection Layer)
  • CE certified
  • 10-Year warranty

SPECIFICATIONS

Eyepiece(s)

  • WF10x/18 mm Wide field

Head

  • Heads are 360° rotatable and secured with a set screw (except EBB-4220-LCD)
  • Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm and equipped with a ± 5 diopter adjustment on the left tube
  • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image

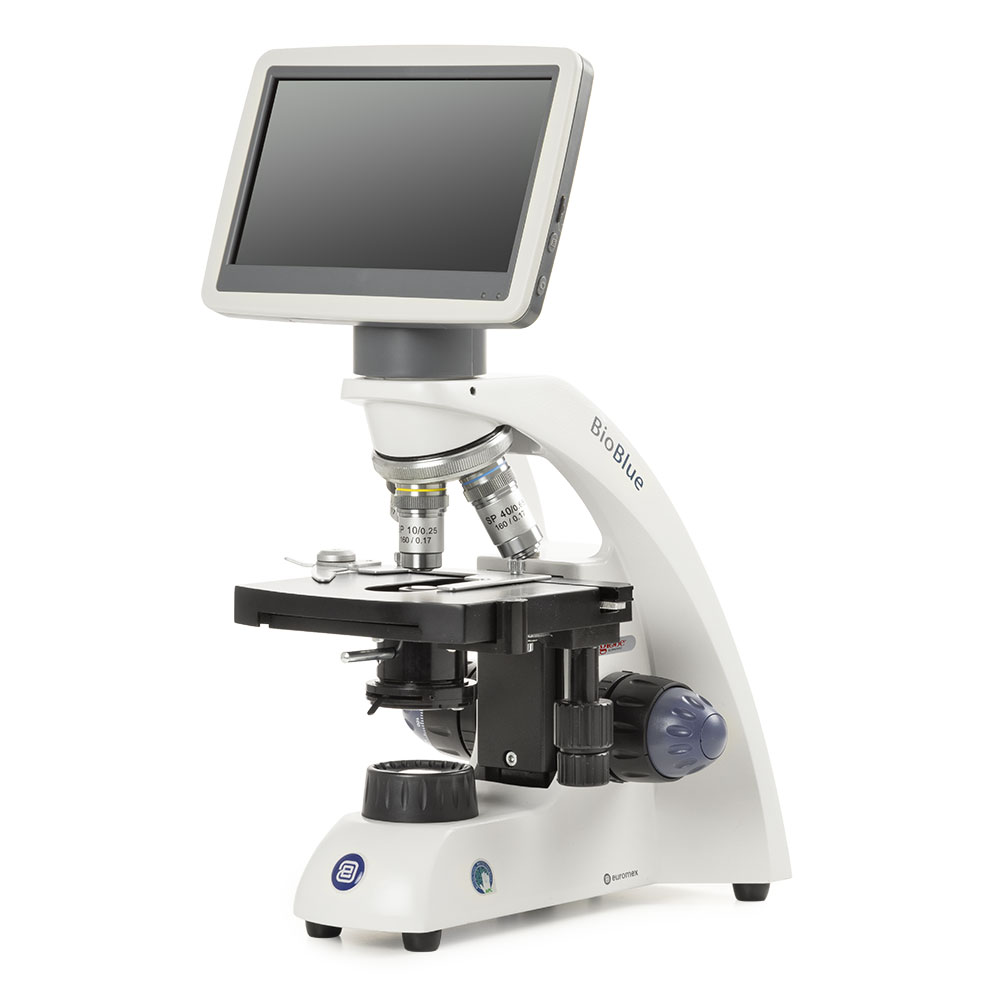

  • Model EBB-4220-LCD supplied with a 7-inch LCD screen

Nosepiece

  • Reversed quadruple nosepiece on ball bearings.

Objectives – 45 MM parfocal

  • Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
  • The S100x oil immersion objectives is spring loaded (to prevent damage to sample and objectives)
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Focusing

  • Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
  • Total travel approximately 23 mm
  • Supplied with an adjustable rack stop to prevent damage to sample and objectives
  • The coarse adjustment is equipped with friction control

Stage

  • 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage

Condenser

  • Height adjustable Abbecondenser N.A. 1.25 with iris diaphragm and filter holder

Illumination

  • Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
  • The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
    • More oblique light from the LED light source can be captured, which increases the light output significantly
    • Less energy is required to achieve this level of light intensity
    • The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
  • All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 VAC power supply for cordless operation

more

Features

Full Description

Globe Scientific® BioBlue Series Compound Microscopes

Clear and bright images at every magnification. The modern BioBlue compound microscopes are developed for educational purposes with a primary focus on ergonomics and today’s quality standards. These microscopes are supplied with secure eyepieces and adjustable rack stop to prevent damage to sample and objectives.

The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification, the image remains perfectly in focus and centered. The 130 x 130mm stage with double layered 70 x 28mm X-Y mechanical stage enable a 2µm precision positioning of the specimen.

FEATURES

  • WF 10x/18mm eyepiece(s)
  • Binocular and trinocular models
  • Model with integrated 7-inch LCD screen
  • Integrated X-Y mechanical stage
  • Height adjustable Abbe condenser with iris diaphragm and filter holder
  • LED models with rechargeable AA batteries and integrated power supply
  • Reversed nosepiece for four semi plan objectives
  • Coaxial coarse and fine adjustments with rack stop
  • Binocular and trinocular models supplied with 1W NeoLED illumination for increased light output
  • Ergonomic stand
  • Provided with APL (Antimicrobial Protection Layer)
  • CE certified
  • 10-Year warranty

SPECIFICATIONS

Eyepiece(s)

  • WF10x/18 mm Wide field

Head

  • Heads are 360° rotatable and secured with a set screw (except EBB-4220-LCD)
  • Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75mm and equipped with a ± 5 diopter adjustment on the left tube
  • The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
  • Model EBB-4220-LCD supplied with a 7-inch LCD screen

Nosepiece

  • Reversed quadruple nosepiece on ball bearings.

Objectives – 45 MM parfocal

  • Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
  • The S100x oil immersion objectives is spring loaded (to prevent damage to sample and objectives)
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Focusing

  • Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
  • Total travel approximately 23 mm
  • Supplied with an adjustable rack stop to prevent damage to sample and objectives
  • The coarse adjustment is equipped with friction control

Stage

  • 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage

Condenser

  • Height adjustable Abbecondenser N.A. 1.25 with iris diaphragm and filter holder

Illumination

  • Binocular and trinocular models are supplied with an intensity adjustable 1 W NeoLED™ illumination system for increased light output
  • The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
    • More oblique light from the LED light source can be captured, which increases the light output significantly
    • Less energy is required to achieve this level of light intensity
    • The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
  • All BioBlue microscopes are supplied with rechargeable AA batteries and integrated 100-250 VAC power supply for cordless operation
